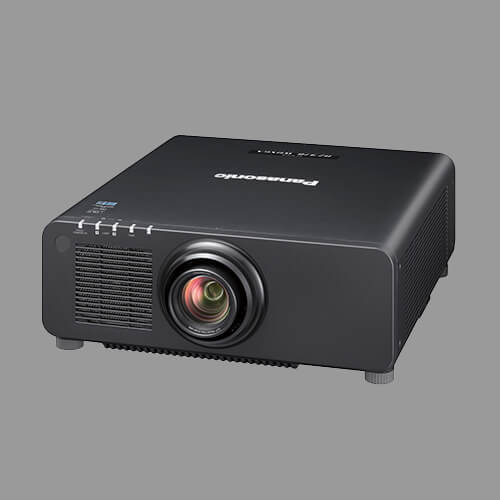

PT-RZ670

1-Chip DLP™ Fixed Installation Laser Projector

PT-RZ670 allows transmission of HDMI, uncompressed HD digital video and control signals (Ethernet, RS-232C) for up to 100 meters (328 feet) through a single CAT5e (STP) cable or higher.
This simplifies cabling and system upgrades, making it ideal for ceiling-mounted and other permanent installations.

Download Specification Enquiry Now

Features

Laser 1-chip DLP, 10,000 lumens (center), WUXGA
High brightness and excellent image quality with laser light source
Maintenance free up to 20,000 hours with dust-resistant optical block and long lasting laser engine
Free 360 degrees installation and Geometric Manager Pro function
10,000:1 contrast ratio

Specification

Power supply			100-240 V AC, 9.0-4.0 A, 50/60 Hz (Taiwan: 110 V AC, 8.0 A, 60Hz)
Power consumption*¹			720W (735 VA at 240 V AC) (Taiwan: 730 VA at 110 V AC), (558 W with OPERATING MODE set to NORMAL, 480 W with OPERATING MODE set to ECO, 448 W with OPERATING MODE set to LONG LIFE1, 430 W with OPERATING MODE set to LONG LIFE 2, 407 W with OPERATING MODE set to LONG LIFE 3), (0.3 W (Taiwan: 0.2 W) when STANDBY MODE set to ECO,*² 3 W when STANDBY MODE set to NORMAL)
DLP™ chip	Panel size		17.0 mm (0.67 in) diagonal (16:10 aspect ratio)	16.5 mm (0.65 in) diagonal (16:10 aspect ratio)
	Display method		DLP™ chip x 1, DLP™ projection system
	Pixels		2,304,000 (1,920 x 1,200) pixels	1,024,000 (1,280 x 800) pixels
Lens	PT-RZ670/ RW630		Powered zoom (throw ratio 1.7-2.4:1), powered focus F 1.7-1.9, f 25.6-35.7 mm	Powered zoom (throw ratio 1.8-2.5:1), powered focus F 1.7-1.9, f 25.6-35.7 mm
Lens	PT-RZ670L/ RW630L		Optional powered zoom/focus and fixed-focus lens
Light source			Laser diode (laser class: class 1 (class 3R for North America))
Screen size (diagonal)			1.27-15.24 m (50-600 in), 1.27-5.08 m (50-200 in) with the ET-DLE055, 2.54-8.89 m (100-350 in) with the ET-DLE030, 16:10 aspect ratio
Brightness*³			6,500 lm (OPERATING MODE: NORMAL)
Center-to-corner uniformity*³			90 %
Contrast*³			10,000:1 (full on/full off, DYNAMIC CONTRAST: ON)
Resolution			1,920 x 1,200 pixels	1,280 x 800 pixels*⁴
Scanning frequency	SDI	3G-SDI	SMPTE ST 424 compliant, [RGB 4:4:4 12-bit/10-bit] 1080(1125)/60i, 1080(1125)/50i, 1080(1125)/25p, 1080(1125)/24p, 1080(1125)/24sF, 1080(1125)/30p, [YPBPR 4:2:2 10-bit] 1080(1125)/60p, 1080(1125)/50p	–
		HD-SDI	SMPTE ST 292 compliant, [YPBPR 4:2:2 10-bit] 720(750)/60p, 720(750)/50p, 1035(1125)/60i, 1080(1125)/60i, 1080(1125)/50i, 1080(1125)/25p, 1080(1125)/24p, 1080(1125)/24sF, 1080(1125)/30p	–
		SD-SDI	SMPTE ST 259 compliant, [YCBCR 4:2:2 10-bit] 480i(525i), 576i(625i)	–
	HDMI/ DVI-D		480i(525i),⁵ 576i(625i),⁵ 480p(525p), 576p(625p), 720(750)/60p, 720(750)/50p, 1080(1125)/60i, 1080(1125)/50i, 1080(1125)/25p, 1080(1125)/24p, 1080(1125)/24sF, 1080(1125)/30p, 1080(1125)/60p, 1080(1125)/50p, VGA (640 x 480)-WUXGA*⁶ (1,920 x 1,200) (compatible with non-interlaced signals only), dot clock: 25-162 MHz.
	RGB		fH: 15-100 kHz, fV: 24-120 Hz, dot clock: 20-162 MHz.
	YPBPR (YCBCR)		fH: 15.75 kHz, fV: 60 Hz [480i (525i)] fH: 15.63 kHz, fV: 50 Hz [576i (625i)] fH: 45.00 kHz, fV: 60 Hz [720 (750)/60p] fH: 33.75 kHz, fV: 60 Hz [1035 (1125)/60i] fH: 28.13 kHz, fV: 50 Hz [1080 (1125)/50i] fH: 27.00 kHz, fV: 24 Hz [1080 (1125)/24p] fH: 33.75 kHz, fV: 30 Hz [1080 (1125)/30p] fH: 56.25 kHz, fV: 50 Hz [1080 (1125)/50p] fH: 31.50 kHz, fV: 60 Hz [480p (525p)] fH: 31.25 kHz, fV: 50 Hz [576p (625p)] fH: 37.50 kHz, fV: 50 Hz [720 (750)/50p] fH: 33.75 kHz, fV: 60 Hz [1080 (1125)/60i] fH: 28.13 kHz, fV: 25 Hz [1080 (1125)/25p] fH: 27.00 kHz, fV: 48 Hz [1080 (1125)/24sF] fH: 67.50 kHz, fV: 60 Hz [1080 (1125)/60p]
	Video/YC		fH: 15.75 kHz, fV: 60 Hz [NTSC/NTSC4.43/PAL-M/PAL60], fH: 15.63 kHz, fV: 50 Hz [PAL/PAL-N/SECAM]
Optical axis shift*⁷	Vertical		+50%, -16% from center of screen (powered)	+60%, -16% from center of screen (powered)
Optical axis shift*⁷	Horizontal		+30%, -10% (+28%, -10% with the ET-DLE085) from center of screen (powered)
Keystone correction range			Vertical: ±40°⁸ , horizontal: ±15°⁹	Vertical: ±40°*¹⁰
Keystone correction range with the optional upgrade kit ET-UK20			Vertical: ±45°¹¹ ¹², horizontal: ±40°¹² ¹³	–
Installation			Ceiling/floor, front/rear, 360 degree free installation
Terminals	SDI IN		BNC x 1 (3G/HD/SD-SDI)	–
	HDMI IN		HDMI 19-pin x 1 (Deep Color, compatible with HDCP)
	DVI-D IN		DVI-D 24-pin x 1 (DVI 1.0 compliant, compatible with HDCP, compatible with single link only)
	RGB 1 IN		BNC x 5 (RGB/YPBPR/YCBCR/YC/Video x 1)
	RGB 2 IN		D-Sub HD 15-pin (female) x 1 (RGB/YPBPR/YCBCR x 1)
	SERIAL IN		D-sub 9-pin (female) x 1 for external control (RS-232C compliant)
	SERIAL OUT		D-sub 9-pin (male) x 1 for link control
	REMOTE 1 IN		M3 x 1 for wired remote control
	REMOTE 1 OUT		M3 x 1 for link control (for wired remote control)
	REMOTE 2 IN		D-sub 9-pin (female) x 1 for external control (parallel)
	LAN/ DIGITAL LINK		RJ-45 × 1 (for network and DIGITAL LINK (video/network/serial control) connection, 100Base-TX, compatible with Art-Net, compliant with PJLink™)
Cabinet materials			Molded plastic
Dimensions (W x H x D)	PT-RZ670/ RW630		498 x 200¹⁴ x 581 mm (19-19/32 x 7-7/8¹⁴ x 22-7/8 in) (with supplied lens)
Dimensions (W x H x D)	PT-RZ670L/ RW630L		498 x 200¹⁴ x 538 mm (19-19/32 x 7-7/8¹⁴ x 21-3/16 in) (without lens)
Weight*¹⁵	PT-RZ670/ RW630		Approximately 23.2 kg (51.1 lbs) (with supplied lens)
Weight*¹⁵	PT-RZ670L/ RW630L		Approximately 22.5 kg (49.6 lbs) (without lens)
Noise level*³			35 dB
Operating environment			Operating temperature: 0-45 °C (32-113 °F)*¹⁶, operating humidity: 10-80 % (no condensation)
Applicable software			Logo Transfer Software, Multi Projector Monitoring & Control Software, Geometry Manager Pro (included in the ET-UK20)	Logo Transfer Software, Multi Projector Monitoring & Control Software
Supplied accessories			Power cord with secure lock, wireless/wired remote control unit, batteries (R03/AAA type x 2), software CD-ROM (Logo Transfer Software, Multi Projector Monitoring & Control Software)
