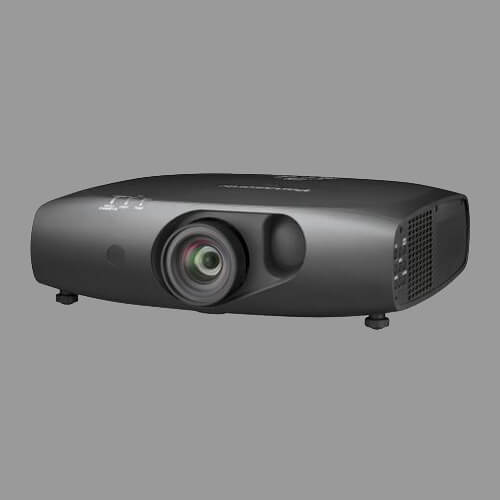

PT-RZ475
Fixed Installation Laser Projector
Solid Shine LED/laser combined projector Ideal for rear projection and extremely long-term continuous operation for use in control rooms or digital signage.
The PT-RZ475 3000 Lumen Solid Shine Full HD 1-Chip DLP Projector from Panasonic is a solid-state projector requiring virtually no bulb replacement or filter cleaning. These features, alongside a simple and effective heat dissipation system, permit long-lasting, maintenance-free usage.
Capable of running 24/7 continuously for a full ten years while maintaining the original brightness and picture quality, it is optimal for heavy-duty use. With no warm-up or cool-down periods, the RZ475 is ideal in educational institutions and training facilities requiring extensive uptime.
Rear projection capability and the high-precision short-throw lens make it suitable for use in close quarters or smaller venues. The lack of an incandescent lamp precludes fading and yellowing, and the LEDs produce clear, beautiful pictures. Multiple-screen function, connectivity with other projectors, seamless image merging and portrait mode capability add further versatility to the projector.
- LED/ Laser 1-chip DLP, 3000 lumens, Full HD
- LED/Laser light source enables up to 87,600 hours (10 years) of maintenance free usage
- Excellent TCO with 24/7 operation and DIGITAL LINK connectivity
- Ideal for rear projection. System expandability with Portrait mode installation capability and edge blending
- 20,000:1 contrast ratio
Power supply | 100-240 V AC, 5.0-1.8 A, 50/60 Hz |
Power consumption | 430 W (440 VA) (230 W with LIGHT POWER set to NORMAL/Eco1, 170 W with LIGHT POWER set to Eco2. 0.5 W with STANDBY MODE set to ECO, 8 W with STANDBY MODE set to NORMAL) |
DLP™ chip Panel size | 16.5 mm (0.65 in) diagonal (16:9 aspect ratio) |
DLP™ chip Display method | DLP™ chip x 1, DLP™ system |
DLP™ chip Pixels | 2,073,600 (1,920 x 1,080) x 1, total of 2,073,600 pixels |
LENS | Auto focus, F 1.8, f 11.9 mm |
Throw ratio | 0.8:1 |
Light source | LED/laser-combined (R, B: LED; G: laser diode) |
Screen size | 1.02-5.08 m (40-200 inches) diagonally, 16:9 aspect ratio |
Brightness | 3,000 lm (power mode: normal),1,600 lm (power mode: Eco1), 1,000 lm (power mode: Eco2) |
Center-to-corner uniformity | 90% |
Contrast | 20,000:1 (full on/off) |
Resolution | 1,920 x 1,080 pixels (Input signals that exceed this resolution will be converted to 1,920 x 1,080 pixels.) |
Scanning Frequency (HDMI/DVI-I (Digital)) | fH: 27-100 kHz, fV: 24-120 Hz, dot clock: 25-162 MHz |
Scanning Frequency (DVI-I (Analog)/RGB) | fH: 15-100 kHz, fV: 24-120 Hz, dot clock: 162 MHz or lower |
Scanning frequency YPBPR (YCBCR) | 480i(525i): fH 15.75 kHz; fV 60 Hz, 576i(625i): fH 15.63 kHz; fV 50 Hz, 480p(525p): fH 31.50 kHz; fV 60 Hz, 576p(625p): fH 31.25 kHz; fV 50 Hz, 720(750) / 60p: fH 45.00 kHz; fV 60 Hz, 720(750) / 50p: fH 37.50 kHz; fV 50 Hz,1035(1125) / 60i: fH 33.75 kHz; fV 60 Hz, 1080(1125) / 60i: fH 33.75 kHz; fV 60 Hz, 1080(1125) / 50i: fH 28.13 kHz; fV 50 Hz, 1080(1125) / 25p: fH 28.13 kHz; fV 25 Hz, 1080(1125) / 24p: fH 27.00 kHz; fV 24 Hz, 1080(1125) / 24sF: fH 27.00 kHz; fV 48 Hz,1080(1125) / 30p: fH 33.75 kHz; fV 30 Hz, 1080(1125) / 60p: fH 67.50 kHz; fV 60 Hz, 1080(1125) / 50p: fH 56.25 kHz; fV 50 Hz |
Scanning Frequency (Video) | fH: 15.75 kHz, fV: 60 Hz [NTSC/NTSC4.43/PAL-M/PAL60]; fH: 15.63 kHz, fV: 50 Hz [PAL/PAL-N/SECAM] |
Optical axis shift | Vertical: ±10% (manual), Horizontal: ±3.4% (manual) |
Keystone correction range | Vertical: ±40° |
Installation | Ceiling/floor, front/rear |
Terminals HDMI IN | HDMI 19-pin x 1, HDCP compatible, Deep Color compatible; 480p(525p), 576p(625p), 720(750)/60p, 720(750)/50p, 1080(1125)/60i, 1080(1125)/50i, 1080(1125)/25p, 1080(1125)/24p, 1080(1125)/24sF, 1080(1125)/30p, 1080(1125)/60p, 1080(1125)/50p, VGA(640 x 480) – WUXGA(1,920 x 1,200), compatible with non-interlaced signals only, dot clock: 25-162 MHz, audio signal: linear PCM (sampling frequencies: 48 kHz, 44.1 kHz, 32 kHz) |
Terminals DVI-I IN | DVI-I 29-pin x 1 |
Terminals DVI-I IN Digital | DVI 1.0 compliant, HDCP compatible, for single link only; 480p, 576p, 720/60p, 720/50p, 1080/60i, 1080/50i, 1080/24p, 1080/24sF, 1080/25p, 1080/30p, 1080/60p, 1080/50p, VGA(640 x 480) – WUXGA(1,920 x 1,200), compatible with non-interlaced signals only, dot clock: 25-162 MHz |
Terminals DVI-I IN R, G, B | R: 0.7 Vp-p, 75 ohms; G: 0.7 Vp-p (G: 1.0 Vp-p for sync on G), 75 ohms; B: 0.7 Vp-p, 75 ohms; HD/VD, SYNC: TTL, high impedance, positive/negative automatic; NOTE: HD/SYNC, and VD terminals do not accept tri-level sync signals. |
Terminals DVI-I IN Y, PB, PR (Y, CB, CR) | Y: 1.0 Vp-p (including sync signal), PB/PR(CB/CR): 0.7 Vp-p, 75 ohms |
Terminals COMPUTER(RGB) IN | D-sub HD 15-pin(female) x 1 |
Terminals COMPUTER(RGB) IN R, G, B | R: 0.7 Vp-p, 75 ohms, G: 0.7 Vp-p (G: 1.0 Vp-p for sync on G), 75 ohms, B: 0.7 Vp-p, 75 ohms; HD/VD, SYNC: TTL, high impedance, positive/negative automatic; NOTE: HD/SYNC, and VD terminals do not accept tri-level sync signals |
Terminals COMPUTER (RGB) IN Y, PB, PR (Y, CB, CR) | Y: 1.0 Vp-p (including sync signal), PB/PR(CB/CR): 0.7 Vp-p, 75 ohms |
Terminals VIDEO IN | Pin jack x 1, 1.0 Vp-p, 75 ohms |
Terminals AUDIO IN | M3(L, R) x 1, 0.5 Vrms |
Terminals AUDIO OUT | M3(L, R) x 1(monitor out: 0-1.8 Vrms, variable) |
Terminals SERIAL IN | D-sub 9-pin (female) x 1 for external control (RS-232C compliant) |
Terminals LAN/DIGITAL LINK | RJ-45 x 1 for network and DIGITAL LINK (video/audio/network/serial control) connection, 100Base-TX, compatible with PJLink™, HDCP compatible, Deep Color compatible, 480p(525p), 576p(625p), 720(750)/60p, 720(750)/50p, 1080(1125)/60i, 1080(1125)/50i, 1080(1125)/25p, 1080(1125)/24p, 1080(1125)/24sF, 1080(1125)/30p, 1080(1125)/60p, 1080(1125)/50p, VGA(640 x 480) – WUXGA(1,920 x 1,200), compatible with non-interlaced signals only, dot clock: 25-162 MHz |
Terminals 3D SYNC OUT | Mini DIN 3-pin x 1, for 3D transmitter connection |
Power cord length | 3.0 m (9 ft 10 in) |
Cabinet materials | Molded plastic |
Dimensions (W x H x D) | 455 x 137 x 409 mm (17-29/32 x 5-13/32 x 16-11/32 inches) (lens included) |
Weight | Approx. 11.5 kg (24.3 lbs) |
Operation noise | 35 dB (LIGHT SOURCE MODE: NORMAL) |
Operating temperature | 0℃ – 45℃(32℉ – 113℉) |
Operating humidity | 20% – 80%(no condensation) |
Technology | 1-chip DLP LED/ Laser |
