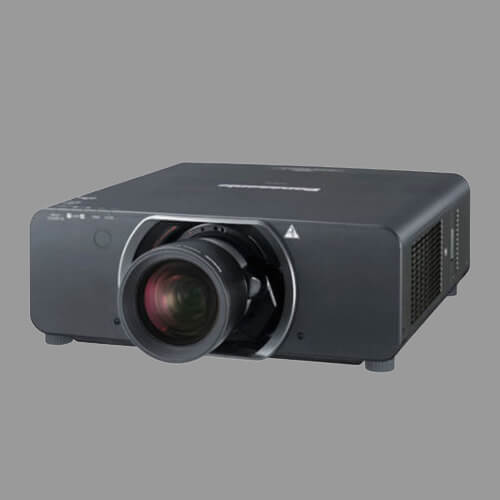

PT-DS12K

Large-Venue Projector

Compact 12000 lumens-class Projector. Designed for events and staging applications.

Our innovative dual-lamp system, with its new lamp, helps to make this body compact while providing a full 12,000lm of brightness, with 220-240V AC operation. When in ‘Lamp Relay’ mode, the system also eliminates any interruptions if a lamp should fail and enables 24/7 projection.

The projector’s Dynamic Iris feature uses a scene-linking aperture mechanism to achieve a remarkable 10,000:1 contrast without lowering its high brightness. This helps to reproduce deeper, richer blacks, and provides images with more detailed textures.

An integrated Eco Filter combines with the dust-resistant cabinet to allow long-term use in harsh conditions, while a maintenance cycle of up to 12,000 hours reduces the time and cost of repair.

Download Specification Enquiry Now

Features

3-chip DLP, 12000 lumens, SXGA+
High brightness and high contrast ratio make bright, crisp and sharp image
Dual lamp system with Lamp Relay mode enables 24/7 operation
10,000:1 contrast ratio
Edge blending function and colour matching

Specification

Power Consumption (120V AC, 50/60Hz)	980 W (1,010 VA)(0.2 W with standby mode set to eco. 6 W with standby mode set to normal. Both with fan stopped.)
Power Consumption (220-240V AC, 50/60Hz)	950 W (980 VA)(0.3 W with standby mode set to eco. 9 W with standby mode set to normal. Both with fan stopped.)
DLP™ chip Panel size	24.1 mm (0.95 inches) diagonal (4:3 aspect ratio)
DLP™ chip Display method	DLP™ chip x 3(R, G, B), DLP™ projection system
DLP™ chip Pixels	1,470,000 (1,400 x 1,050) x 3, total of 4,410,000 pixels
LENS	Optional powered zoom/focus and fixed-focus lenses
Lamp	380 W UHM lamps (x 2) (dual lamp, high mode)
Screen size	1.78-25.4 m (70-1,000 inches) (1.78-15.24 m (70-600 inches) with the ET-D75LE8), 4:3 aspect ratio
Brightness	12,000 lumens (dual lamp, high mode)
Center-to-corner uniformity	90%
Contrast	10,000:1 (full on/off, with dynamic iris 3 mode)
Resolution	1,400 x 1,050 pixels (Input signals that exceed this resolution will be converted to 1,400 x 1,050 pixels.)
Scanning Frequency (SDI)	Dual-link HD-SDI signal (RGB 4:4:4 12-bit/10-bit): SMPTE ST 372 compliant: 1125(1080)/60i, 1125(1080)/50i, 1125(1080)/25p, 1125(1080)/24p, 1125(1080)/24sF, 1125(1080)/30p; Dual-link HD-SDI signal (X’ Y’ Z’ 4:4:4 12-bit): SMPTE ST 372 compliant: 2048 x 1080/24p, 2048 x 1080/24sF; 3G-SDI signal (RGB 4:4:4 12-bit/10-bit): SMPTE ST 424 compliant: 1125(1080)/60i, 1125(1080)/50i, 1125(1080)/25p, 1125(1080)/24p, 1125(1080)/24sF, 1125(1080)/30p; 3G-SDI signal (YPBPR 4:2:2 10-bit): SMPTE ST 424 compliant: 1125(1080)/60p, 1125(1080)/50p; HD-SDI signal (YPBPR 4:2:2 10-bit): SMPTE ST 292 compliant: 750(720)/60p, 750(720)/50p, 1125(1035)/60i, 1125(1080)/60i, 1125(1080)/50i, 1125(1080)/25p, 1125(1080)/24p, 1125(1080)/24sF, 1125(1080)/30p; SD-SDI signal (YCBCR 4:2:2 10-bit): SMPTE ST 259 compliant: 525i(480i), 625i(576i)
Scanning Frequency (HDMI/DVI-D/RGB)	Horizontal: 15 kHz-100 kHz, Vertical: 24 Hz-120 Hz, dot clock: 25-162 MHz or lower (HDMI/DVI: 25 MHz-162 MHz)
Scanning frequency YPBPR (YCBCR)	525i(480i): fH 15.75 kHz; fV 60 Hz, 625i(576i): fH 15.63 kHz; fV 50 Hz, 525p(480p): fH 31.50 kHz; fV 60 Hz, 625p(576p): fH 31.25 kHz; fV 50 Hz, 750(720)/60p: fH 45.00 kHz; fV 60 Hz, 750(720)/50p: fH 37.50 kHz; fV 50 Hz, 1125(1035)/60i: fH 33.75 kHz; fV 60 Hz, 1125(1080)/60i: fH 33.75 kHz; fV 60 Hz, 1125(1080)/50i: fH 28.13 kHz; fV 50 Hz, 1125(1080)/25p: fH 28.13 kHz; fV 25 Hz, 1125(1080)/24p: fH 27.00 kHz; fV 24 Hz, 1125(1080)/24sF: fH 27.00 kHz; fV 48 Hz, 1125(1080)/30p: fH 33.75 kHz; fV 30 Hz, 1125(1080)/60p: fH 67.50 kHz; fV 60 Hz, 1125(1080)/50p: fH 56.25 kHz; fV 50 Hz
Scanning Frequency (Video/S-Video)	fH: 15.75 kHz, fV: 60 Hz [NTSC/NTSC4.43/PAL-M/PAL60]; fH: 15.63 kHz, fV: 50 Hz [PAL/PAL-N/SECAM]
Optical axis shift Vertical	±50 % (±40 % with the ET-D75LE6) from center of screen, powered; NOTE: Optical axis shift function cannot be operated when used with the ET-D75LE50.
Optical axis shift Horizontal	±30 % (±20 % with the ET-D75LE6) from center of screen, powered; NOTE: Optical axis shift function cannot be operated when used with the ET-D75LE50.
Keystone correction range	Vertical ±40°, horizontal ±15°(vertical ±22° and horizontal ±15° with the ET-D75LE5/LE50, vertical ±28° and horizontal ±15° with the ET-D75LE6); When using only the KEYSTONE correction of the Geometric Adjustment function: Vertical ±40°, horizontal ±15°; When using the optional upgrade kit ET-UK20: Vertical ±40° and horizontal ±40° with the ET-D75LE1/LE2/LE10/LE20,vertical ±45°and horizontal ±40° with the ET-D75LE3/LE4/LE30/LE40, vertical ±22° and horizontal ±15° with the ET-D75LE5/LE50,vertical ±28° and horizontal ±15° with the ET-D75LE6; When using both the KEYSTONE and CURVED corrections of the Geometric Adjustment function: Vertical ±20°, horizontal ±15°(vertical ±8° and horizontal ±8° with the ET-D75LE5/50,vertical ±10° and horizontal ±10° with the ET-D75LE6)
Installation	Ceiling/floor, front/rear
Terminals SDI IN 1	BNC x 1; Dual-link HD-SDI signal: SMPTE ST 372 compliant (Link-A); 3G-SDI signal: SMPTE ST 424 compliant; HD-SDI signal: SMPTE ST 292 compliant; SD-SDI signal: SMPTE ST 259 compliant
Terminals SDI IN 2	BNC x 1,Dual-link HD-SDI signal: SMPTE ST 372 compliant (Link-B); HD-SDI signal: SMPTE ST 292 compliant; SD-SDI signal: SMPTE ST 259 compliant
Terminals HDMI IN	HDMI 19-pin x 1, Deep Color, compatible with HDCP; 525i(480i), 625i(576i), 525p(480p), 625p(576p), 750(720)/60p, 750(720)/50p, 1125(1080)/60i, 1125(1080)/50i, 1125(1080)/25p, 1125(1080)/24p, 1125(1080)/24sF, 1125(1080)/30p, 1125(1080)/60p, 1125(1080)/50p; VGA(640 x 480) – WUXGA(1,920 x 1,200), dot clock: 25 MHz -162 MHz; NOTE: Compatible with non-interlaced signals only.
Terminals DVI-D IN	DVI-D 24-pin x 1, DVI 1.0 compliant, HDCP compatible,for single link only; 525i(480i), 625i(576i), 525p(480p), 625p(576p), 750(720)/60p, 750(720)/50p, 1125(1080)/60i, 1125(1080)/50i, 1125(1080)/25p, 1125(1080)/24p, 1125(1080)/24sF, 1125(1080)/30p, 1125(1080)/60p, 1125(1080)/50p, VGA(640 x 480) – WUXGA(1,920 x 1,200), dot clock: 25 MHz -162 MHz
Terminals RGB 1 IN	BNC x 5
Terminals RGB 1 IN R, G, B	R: 0.7 Vp-p, 75 ohms; G: 0.7 Vp-p (G: 1.0 Vp-p for sync on G), 75 ohms; B: 0.7 Vp-p, 75 ohms; HD, VD/SYNC: TTL, high impedance, positive/negative automatic; NOTE: SYNC/HD and VD terminals do not accept tri-level sync signals.
Terminals RGB 1 IN Y, PB, PR (Y, CB, CR)	Y: 1.0 Vp-p (including sync signal), PB/PR (CB/CR): 0.7 Vp-p, 75 ohms
Terminals RGB 1 IN S-Video signal	Y: 1.0 Vp-p, C: 0.286 Vp-p, 75 ohms
Terminals RGB 2 IN	D-sub HD 15-pin (female) x 1
Terminals RGB 2 IN R, G, B	R: 0.7 Vp-p, 75 ohms; G: 0.7 Vp-p (G: 1.0 Vp-p for sync on G), 75 ohms; B: 0.7 Vp-p, 75 ohms; HD, VD/SYNC: TTL, high impedance, positive/negative automatic; NOTE: SYNC/HD and VD terminals do not accept tri-level sync signals.
Terminals RGB 2 IN Y, PB, PR (Y, CB, CR)	Y: 1.0 Vp-p (including sync signal), PB/PR (CB/CR): 0.7 Vp-p, 75 ohms
Terminals VIDEO IN	BNC x 1, 1.0 Vp-p, 75 ohms
Terminals 3D SYNC 1 IN/OUT	BNC x 1, 1.0 Vp-p, 75 ohms; Input: TTL, high impedance. Output: TTL, max. 10 mA
Terminals 3D SYNC 2 OUT	BNC x 1, 1.0 Vp-p, 75 ohms, TTL, max. 10 mA
Terminals SERIAL IN	D-sub 9-pin (female) x 1 for external control (RS-232C compliant)
Terminals SERIAL OUT	D-sub 9-pin (male) x 1 for link control (RS-232C compliant)
Terminals Remoter 1 In	M3 jack x 1 for wired remote control
Terminals Remoter 1 Out	M3 jack x 1 for link control
Terminals Remoter 2 In	D-sub 9-pin x 1 for external control (parallel)
Terminals LAN	RJ-45 x 1 for network connection, 100Base-TX/10Base-T, compliant with PJLink™(class 1)
Power cord length	3.0 m (9 ft 10 in)
Cabinet materials	Molded plastic
Dimensions (W x H x D)	530 x 200 x 548.5 mm (20-7/8 x 7-7/8 x 21-19/32 inches) (without lens)
Weight	24 kg (52.9 lbs) (without lens)
Operation noise	45 dB (high mode), 43 dB (middle mode), 37 dB (eco mode)
Operating temperature	0℃ – 45℃ (32℉ – 113℉)
Operating humidity	10% – 80% (no condensation)
Power supply	120 V AC, 9.1 A, 50/60 Hz; 220-240 V AC, 4.8 A, 50/60 Hz
Technology	3-Chip DLP
