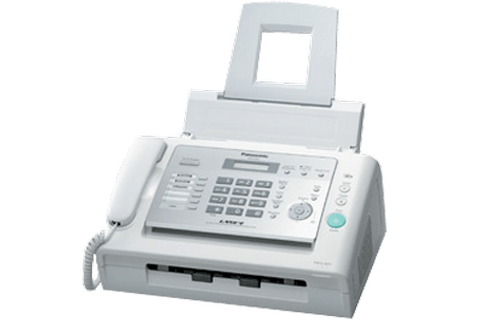

KX-FL423ML
33.6 kbps Super G3 Fax with Fax Modem
10ppm Laser Print Speed (A4)
Caller ID Compatible
Others Features
- Navigator key for easy operation
- Junk fax prohibitor (up to 20 stations)
- Delayed send (1 location)
- Auto reduction
- 64-level halftone resolution
- Friendly fax reception
- Out-of-paper reception (100 pages)
- Auto document feeder (15 sheets)
- 250-sheets paper tray (20lb.)
- Quick scan (150 sheets)
- Redial / Pause / Handset mute
- Phonebook (100 stations)
- One-touch dial (5 x 2 with Lower)
- Sending report
- Overseas mode
- On-hook dial (Pre-dial, Phonebook, Redial, One touch dial)
- Monitor
- EXT telephone feature supported
| General | Compatibility | ITU-T G3 |
| Printing Method | Laser Printing on Plain Paper | |
| Effective Scanning Width | 208mm | |
| Effective Printing Width | 202mm (A4) | |
| Resolution | Standard / Fine / Photo / Super Fine / Mixed | |
| Paper Size | A4 | |
| Modem Speed | 33.6 kbps Super G3 | |
| Transmission Speed | Approx. 4 Seconds Per Page *1 in ECM – MMR Mode | |
| Compression System | MH / MR / MMR 2.5MB | |
| Document Memory | Reception: 100 Pages *1 Transmission: 150 Pages *1 | |
| Copier Function | Multiple Copies (Up to 99 Pages) | |
| Enlarge / Reduce | 50 − 200% (In 5% Step) | |
| Collate Feature | Available | |
| User LOGO Transmission | Up to 30 Characters in Fax Header | |
| Fax Number Registration | Up to 20 Digits (SUB_ID) | |
| LCD Readout | 6 Digits / 2 Lines | |
| Integrated Telephone System | Dial Mode | Tone (DTMF) / Pulse |
| Manual Answer | Tel, Tel / Fax | |
| Callback Feature | Available *2 | |
| Incoming Call Ringer | Ring Tone 1, 2, 3 | |
| Monitor Volume | 8 Levels | |
| Handset Volume | 3 Levels | |
| Flash | Available | |
| Caller ID | FSK / DTMF Compatible *2 | |
| Power Consumption | Standby | 2 W |
| Copy | 240 W | |
| Maximum | 950 W (When the Fuser Lamp Turns On) | |
| Power Supply | – | |
| Voltage (V) | AC 220-240V | |
| Hertz (Hz) | Hertz (Hz) | |
| Dimension / Weight | Dimension (W x D x H) *5 | 360mm x 357mm x 218mm / 14″ x 14″ x 9″ |
| Weight *5 | 7.4 kg / 16.3 lb. | |
| Consumables | Toner | KX-FAT88E (2000 Pages *3) |
| Drum Unit | KX-FAD89E (10000 Pages *4) | |
| NOTE | Design and specifications are subject to change without notice. | |
